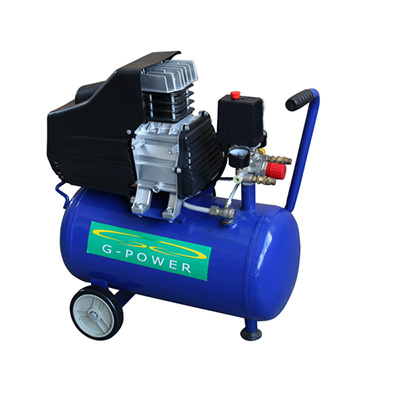

HomeProducts Direct-driver oilless



Model Motor

Pressure

Cylinder 50Hz 60Hz  Tank N.W. MEAS.
Stroke Speed Displacement Stroke Speed Displacement
kw HP bar psi mm n mm rpm L/min cfm mm rpm L/min cfm L Gal kg Lbs L×W×H(cm)
GPW-BM24-2P 1.5 2 8 116 51 1 30 2850 175  6.2  30 3450 211 7.5  24 6.3  23 51  58×28×62
GPW-BM24-4P 1.1 1.5 8 116 51 1 30 1450 89  3.2  30 1700 104 3.7  24 6.3  25 55  58×28×62
