Model Motor Pressure Cylinder 50Hz 60Hz  Tank N.W. MEAS.
Stroke Speed Displacement Stroke Speed Displacement
kw HP bar psi mm n mm rpm L/min cfm mm rpm L/min cfm L Gal kg Lbs L×W×H(cm)

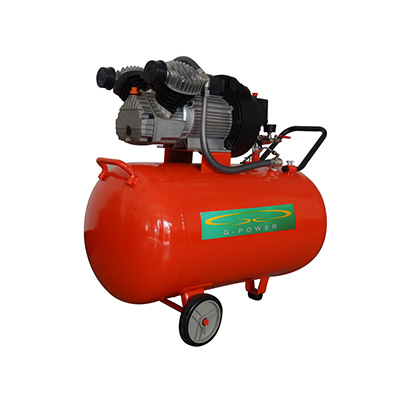

GP-VFL80 2.2 3 8 116 48 2 33 2850 340  12.1  33 3450 315 11.2  80 21.1  45 99  84×36×78
GP-VFL100 2.2 3 8 116 48 2 33 2850 340  12.1  33 3450 315 11.2  100 26.4  66 146  86×45×83
